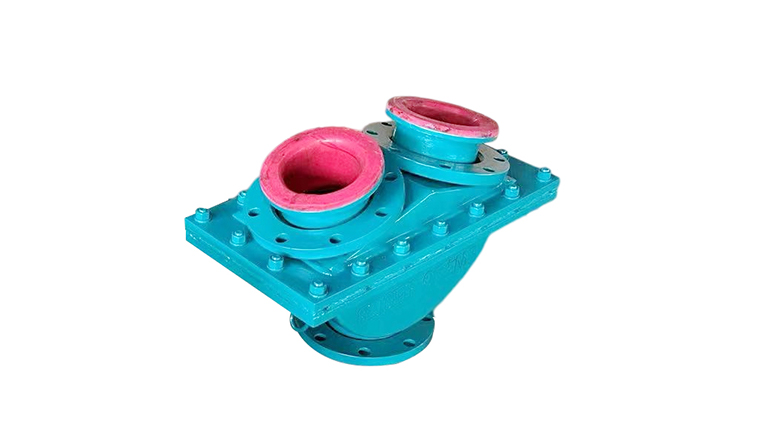

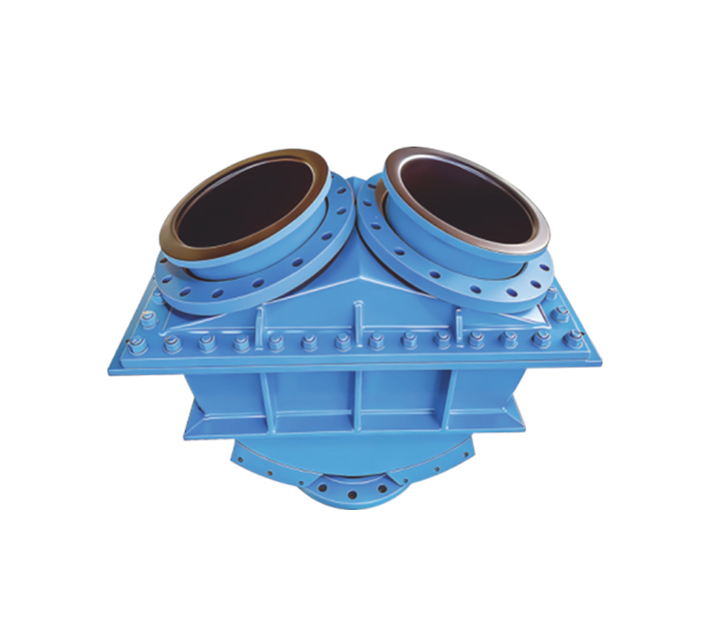

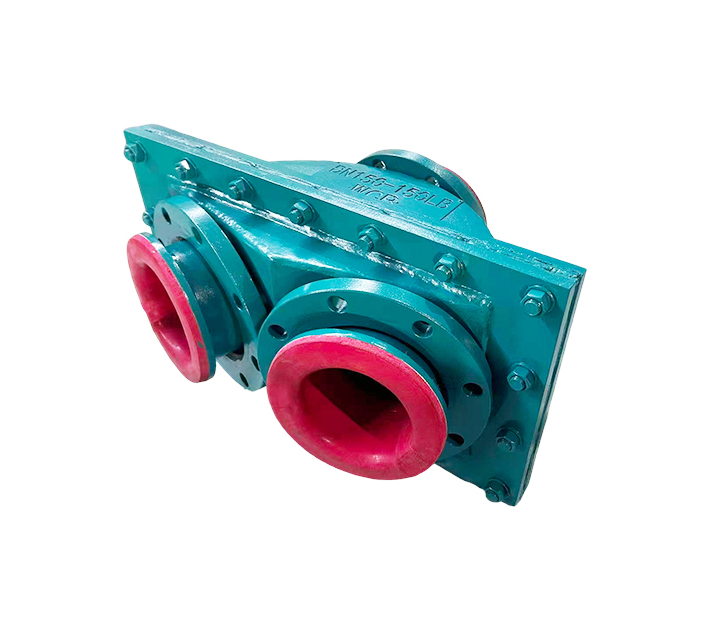

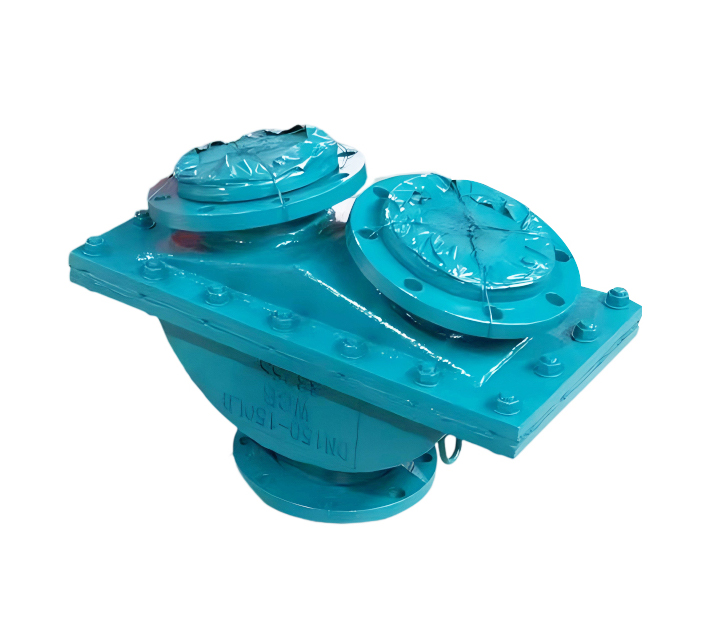

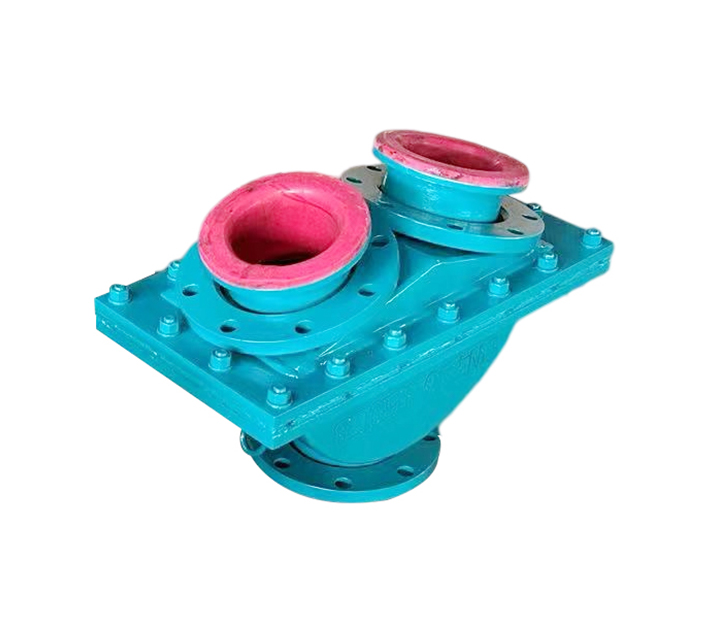

Three-way Directional Valve

Size:

DN50-800

Pressure Rating:

PN6-PN25 150LB

Material:

WCB CF8 CF8M

Design Standard:

API 599, GB/T 26144

Medium

Sewage, slurry, mud, low-concentration acid and alkali solutions

Application Medium:

Slurry conveying and distribution, tailings treatment, sintering dust removal systems.

Send Email

Chat Now

Products PDF

Mining operations demand valves and piping components that can withstand the toughest conditions – abrasive slurries, high solids content, corrosive chemicals, and constant wear.

Download

(17.3 MB)

Features

A Three-way Directional Valve is a specialized flow control valve designed to selectively direct the flow of media from one inlet to one of two outlets (or combine flow from two inlets to one outlet). Unlike standard two-way valves that simply open or close a single flow path, a three-way directional valve enables flow diversion, selection, or mixing within a single valve body, eliminating the need for multiple valves and complex piping arrangements.

Three-port configuration – One inlet, two outlets (or two inlets, one outlet)

Flow diversion capability – Directs media from a single source to one of two destinations

Diverter or selector operation – L-port (diverter) for switching between outlets; T-port (mixing) for combining flows

Bubble-tight shut-off – Positive seal on the non-selected port

Multipurpose functionality – One valve replaces multiple two-way valves and tee fittings
