Home > Products > Mining Industry > Ceramic-Lined Gate Valve

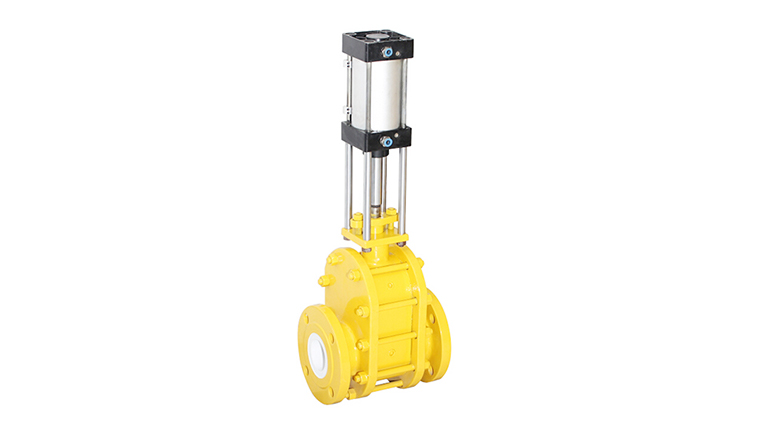

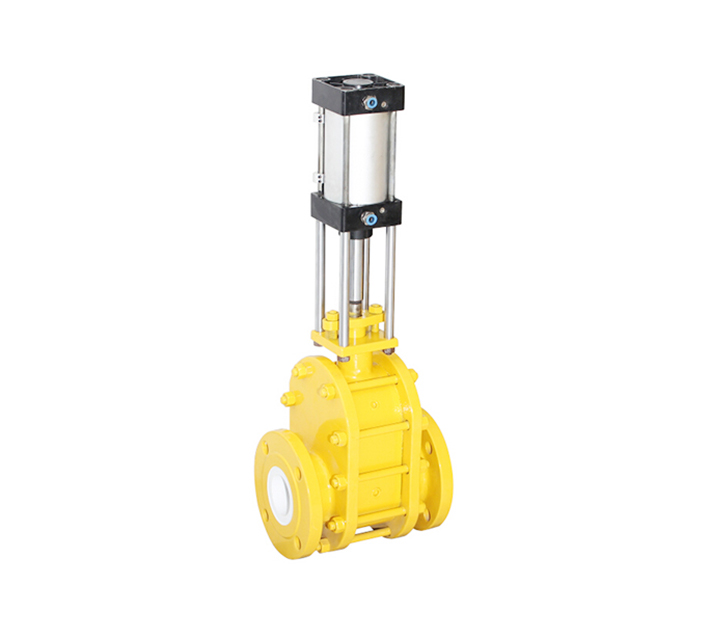

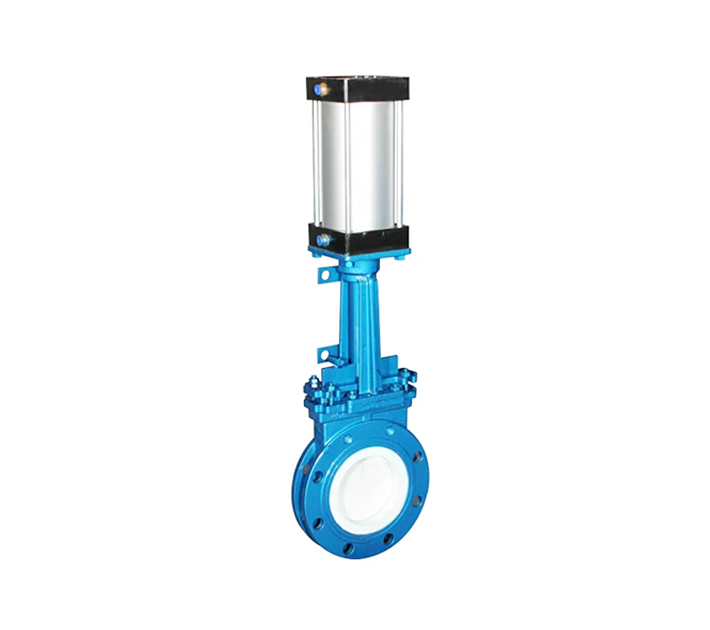

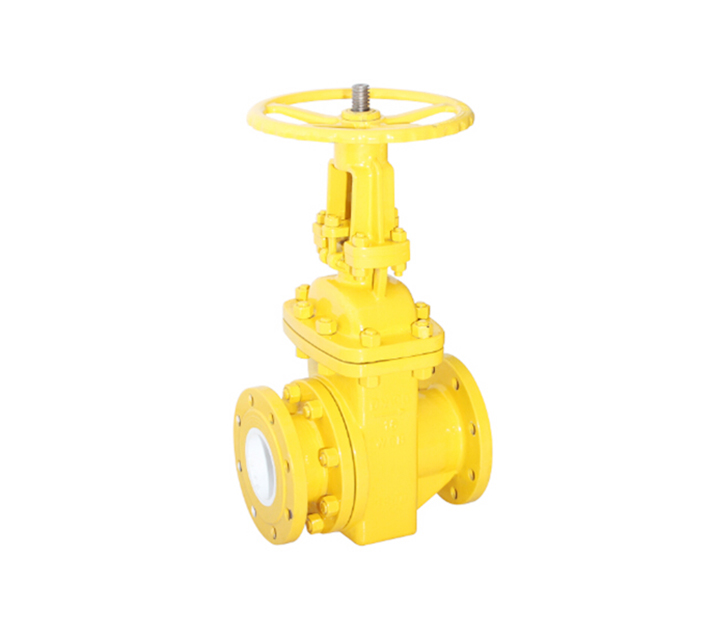

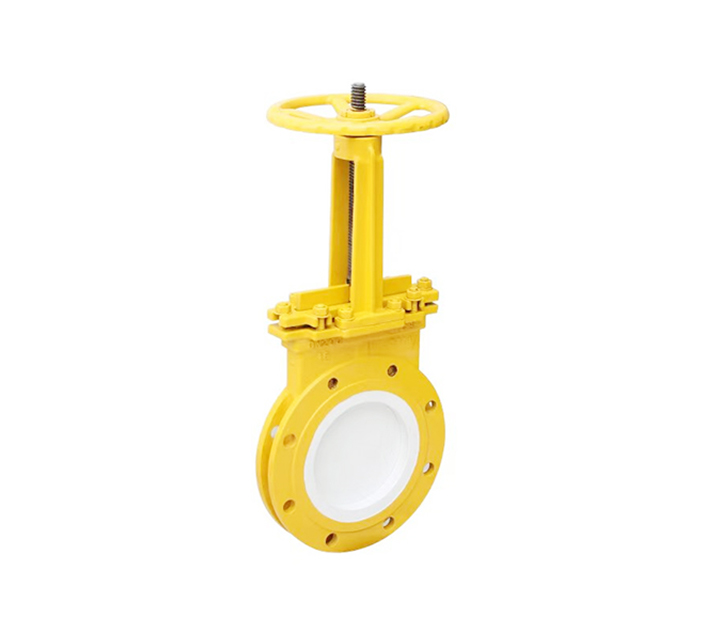

Ceramic-Lined Gate Valve

Size:

DN50-1000

Pressure Rating:

PN10-16

Material:

WCB, CF8, CF8M

Design Standard:

JB/T8691-1998

Medium

Slurry, slag, blast furnace gas ash, dry ash, pulverized coal, cement, granular materials, etc.

Application Medium:

Mining slurry, power plant ash removal, coal chemical black water, metallurgical slurry, and highly corrosive slurries.

Send Email

Chat Now

Products PDF

Mining operations demand valves and piping components that can withstand the toughest conditions – abrasive slurries, high solids content, corrosive chemicals, and constant wear.

Download

(17.3 MB)

Features

A Ceramic-Lined Gate Valve is a heavy-duty industrial gate valve where all wetted surfaces — the body interior, the gate (wedge), and the seat areas — are lined with high-performance engineering ceramic (typically alumina ceramic, Al₂O₃, or zirconia ceramic).

The ceramic lining provides exceptional wear resistance, erosion resistance, and corrosion resistance far exceeding that of standard metal gate valves, while the outer metal body (WCB, CF8, CF8M) provides mechanical strength and pressure containment.

Superior abrasion resistance – Ceramic hardness (9 on Mohs scale, sapphire-level) resists wear from sharp particles

Excellent erosion resistance – Withstands high-velocity abrasive media without surface degradation

Corrosion resistance – Ceramic is inert to most acids, alkalis, and chemicals

Long service life – Ceramic lining lasts 5-10 times longer than hardened steel in abrasive service
