Home > Products > Ball Valve > Ceramic-Lined Ball Valve

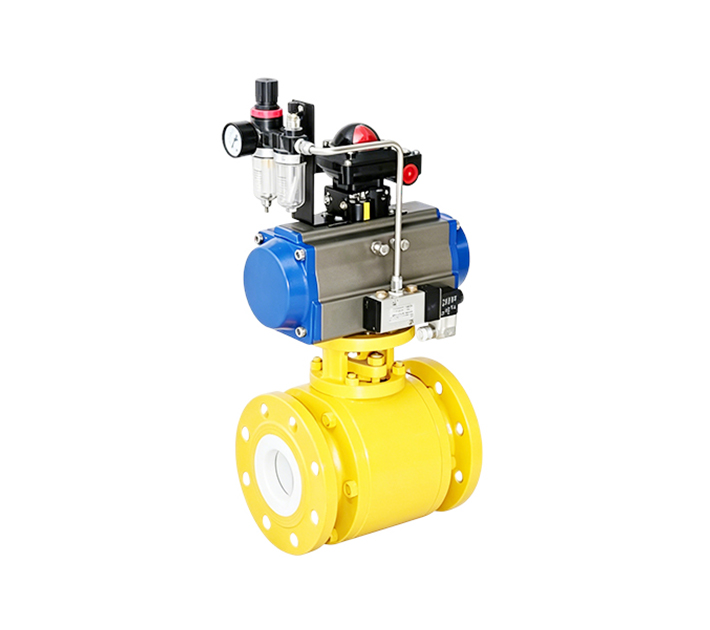

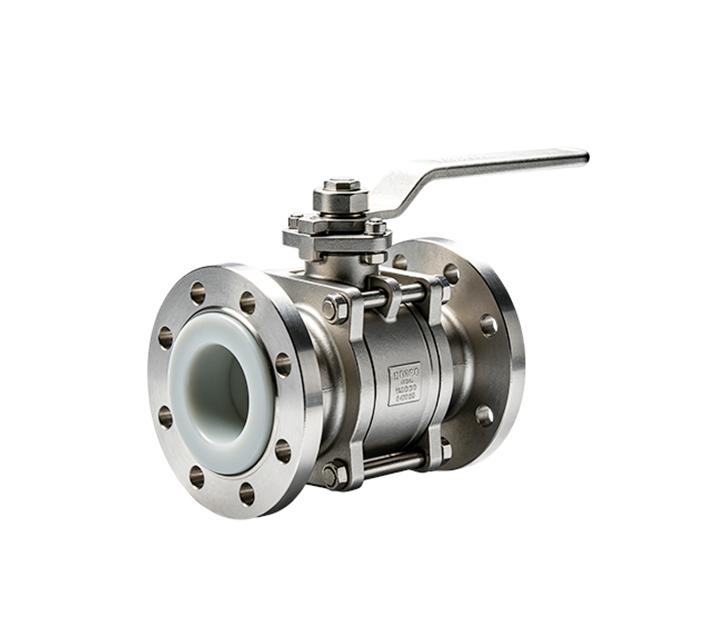

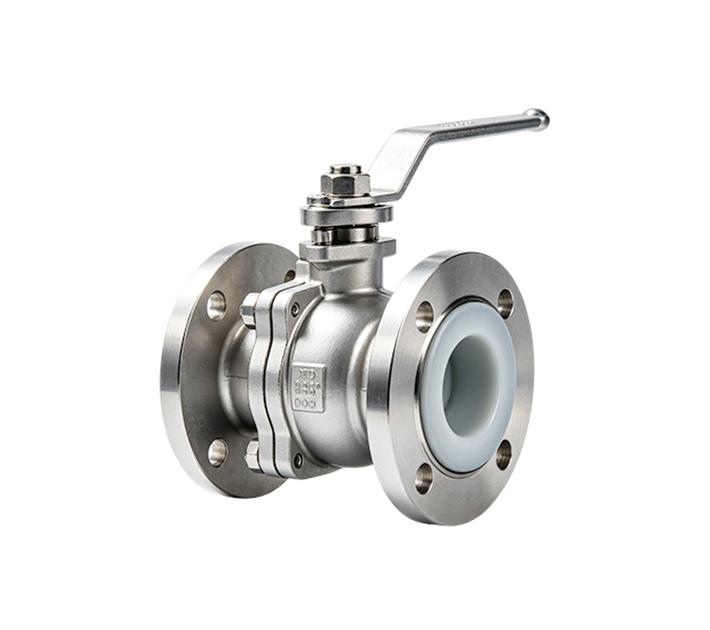

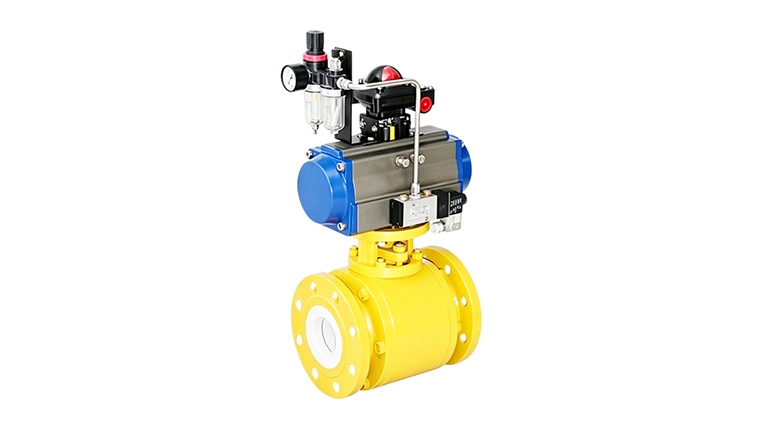

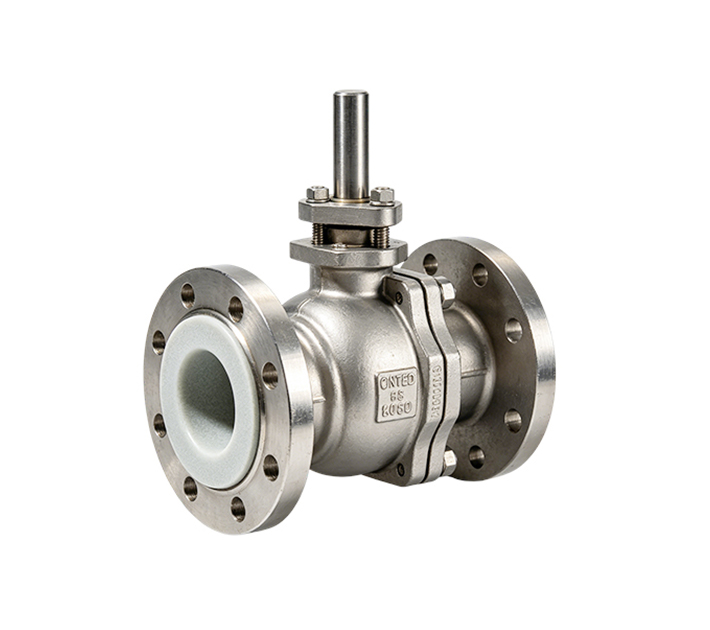

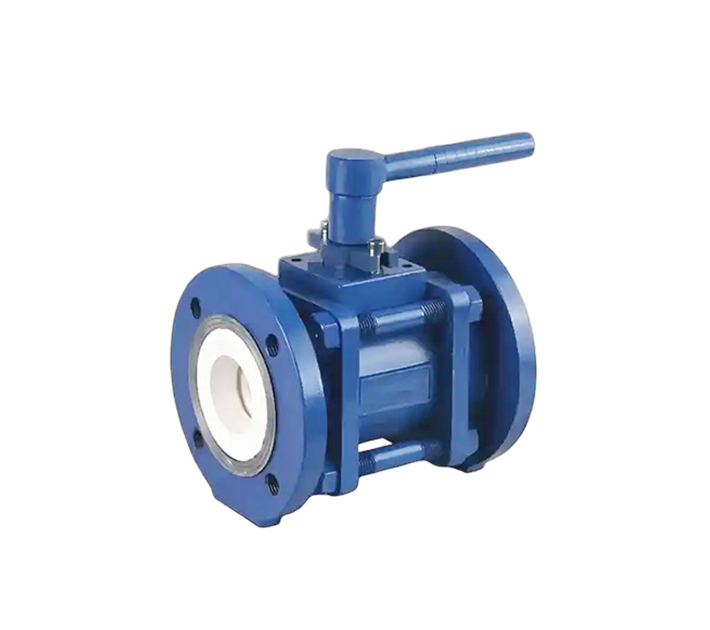

Ceramic-Lined Ball Valve

Size:

DN20-350

Pressure Rating:

PN10-64

Material:

A105, E304, F316

Design Standard:

GB/T12237-2007

Medium

Silica powder, coal powder, coal slurry, molten slurry, powdery slurry, asphalt slurry, acid, hydrochloric acid, calcium carbonate, and other highly corrosive media.

Application Medium:

Mining slurry, coal chemical industry, new energy material preparation, high-intensity ash removal, and harsh corrosive and abrasive conditions.

Send Email

Chat Now

Products PDF

Mining operations demand valves and piping components that can withstand the toughest conditions – abrasive slurries, high solids content, corrosive chemicals, and constant wear.

Download

(17.3 MB)

Features

A Ceramic-Lined Ball Valve is a high-performance quarter-turn valve where all wetted surfaces — the ball, the body interior, and the seat areas — are lined with or manufactured from high-performance engineering ceramic (typically alumina ceramic, Al₂O₃, or zirconia ceramic).

The ceramic lining provides exceptional wear resistance, erosion resistance, and corrosion resistance far exceeding that of standard metal or lined ball valves, while the outer metal body (A105, E304, F316) provides mechanical strength and pressure containment.

Superior abrasion resistance – Ceramic hardness (9 on Mohs scale, sapphire-level) resists wear from sharp particles (silica, coal, calcium carbonate)

Excellent erosion resistance – Withstands high-velocity abrasive media without surface degradation

Corrosion resistance – Ceramic is inert to most acids, alkalis, and chemicals (hydrochloric acid, etc.)

Low operating torque – Polished ceramic ball and seats provide extremely low friction
