Hard Sealing Gate Valve vs Soft Sealing Gate Valve: Incorrect Choice Affects System Lifespan!

Hard Sealing Gate Valve vs Soft Sealing Gate Valve: Incorrect Choice Affects System Lifespan!

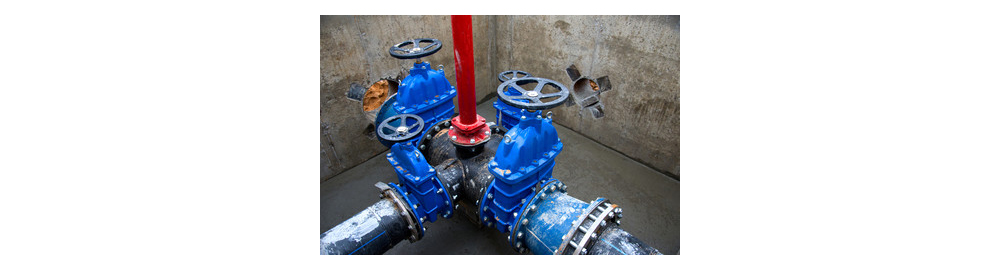

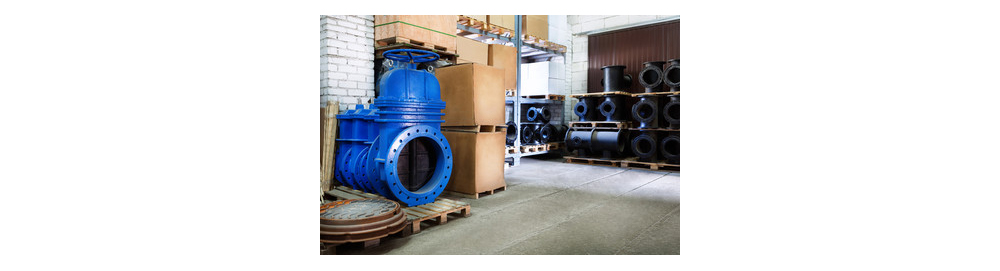

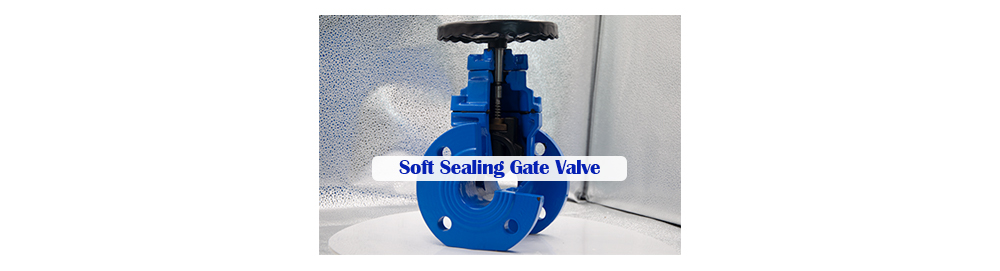

Soft Sealing Gate Valve:

A soft sealing gate valve uses soft materials (such as rubber, PTFE, etc.) as sealing materials. These soft sealing materials form a tight contact with the valve seat, ensuring a seal.

Key Features:

Sealing Material: Uses soft sealing materials like rubber, PTFE, etc., which provide high sealing performance.

Sealing Performance: Due to the excellent elasticity of the sealing materials, it fills the gaps between sealing surfaces better, ensuring initial sealing, particularly suitable for low-pressure applications.

Temperature Range: Typically suitable for ambient to medium temperatures (usually below 150°C), not suitable for high-temperature environments.

Applicable Media: Suitable for clean media such as water, oil, and natural gas. Soft sealing gate valves perform poorly with corrosive or solid particle-containing media.

Cost: Relatively low, suitable for budget-conscious projects.

Applications of Soft Sealing Gate Valve:

Water Treatment Industry: For applications like water supply and drainage systems, municipal water networks, etc., where the water is relatively clean, soft sealing gate valves provide excellent sealing.

Low-Pressure Gas Pipelines: Such as natural gas pipelines and city gas, suitable for low-pressure media at normal temperatures.

Wastewater Treatment: Suitable for clean media in wastewater treatment.

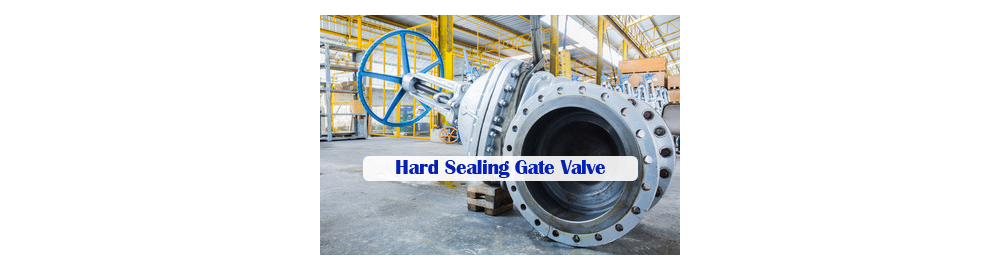

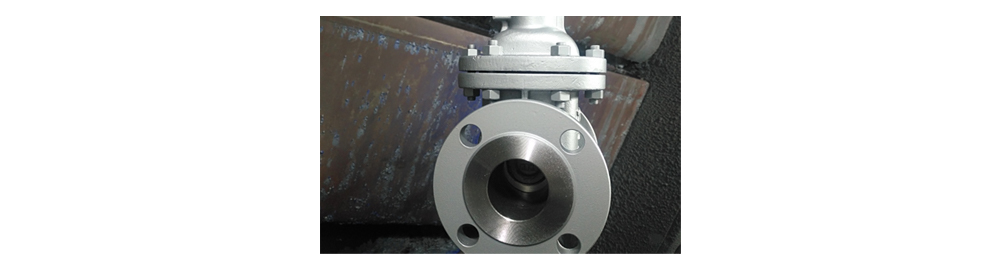

Hard Sealing Gate Valve:

A hard sealing gate valve uses metal alloys (such as stainless steel, hard alloys, ceramics, etc.) as sealing materials. These hard materials have greater compressive strength and wear resistance, making them suitable for harsher working conditions.

Key Features:

Sealing Material: Uses metal or hard alloy materials for sealing surfaces, offering high strength and wear resistance.

Sealing Performance: Hard sealing valves offer stable sealing performance, suitable for high-pressure, high-temperature, and corrosive environments. Due to the high hardness of the sealing surface, they effectively resist pressure and are less prone to deformation with long-term use.

High-Temperature Resistance: Can withstand high temperatures, typically enduring temperatures above 300°C, suitable for high-temperature applications.

Corrosion Resistance: Strong resistance to corrosive media like acids, alkalis, chlorine gas, etc.

Applicable Media: Suitable for high-pressure, corrosive, and particulate-containing media. Common applications include industries like petrochemicals, steel smelting, and natural gas, which involve high temperatures and pressures.

Lifespan: Due to the hardness of the sealing material, hard sealing gate valves usually have a longer lifespan.

Applications of Hard Sealing Gate Valve:

Petrochemical Industry: Hard sealing gate valves perform well in high-temperature, high-pressure, and corrosive environments involving substances like petroleum, natural gas, and chemicals.

Steel Smelting Industry: Used in steel smelting, where high temperatures and pressures are common, hard sealing valves withstand these extreme conditions.

High-Temperature Steam Systems: Such as steam pipelines and boiler systems in power plants, where valves must endure high temperatures and pressures.

Main Differences Summary:

Can Hard Sealing Gate Valves Replace Soft Sealing Gate Valves? Key Parameter Comparison and Industry Case Studies

Whether hard sealing gate valves can replace soft sealing gate valves depends on the application scenario and media requirements. While hard sealing valves have advantages in many areas, they cannot completely replace soft sealing valves in all cases. To help make the correct choice, we will compare the key parameters of both types and analyze their respective advantages and disadvantages, and whether they can replace each other.

Key Parameter Comparison:

Can Hard Sealing Gate Valves Replace Soft Sealing Gate Valves?

Sealing Performance Comparison:

Hard sealing gate valves have metal or alloy sealing surfaces with high compressive strength and wear resistance, providing more stable sealing performance, especially in high-pressure, high-temperature, and corrosive environments. However, soft sealing valves generally provide better initial sealing in low-pressure conditions, where the elastic sealing materials excel at filling gaps.

Replacement Possibility: Hard sealing valves can replace soft sealing valves in high-temperature and high-pressure environments, but soft sealing valves usually perform better in clean, low-pressure conditions.

High-Temperature and Corrosion Resistance:

Hard sealing gate valves have superior high-temperature and corrosion resistance, with their metallic seal materials capable of withstanding temperatures above 300°C and resisting corrosion from various chemicals. In contrast, soft sealing gate valves are generally limited to temperatures below 150°C and are more susceptible to degradation from temperature and chemical corrosion.

Replacement Possibility: Hard sealing valves can replace soft sealing valves in high-temperature and corrosive environments.

Applicable Media:

Hard sealing valves can handle highly corrosive media and those containing solid particles (e.g., acids, alkalis, natural gas). Soft sealing valves, however, are generally not suited for such environments and perform best with clean, non-corrosive media.

Replacement Possibility: Hard sealing valves can replace soft sealing valves in corrosive and particulate-containing media.

Seal Life and Maintenance:

Hard sealing valves have longer lifespans due to the wear-resistant nature of their sealing materials, making them suitable for applications requiring frequent operation. Soft sealing valves, on the other hand, experience wear and aging of the sealing materials, leading to a shorter lifespan.

Replacement Possibility: Hard sealing valves can replace soft sealing valves in high-usage applications due to their longer lifespan and lower maintenance requirements.

Cost and Economics:

Hard sealing valves generally have higher costs due to the use of expensive materials and more complex manufacturing processes. Soft sealing valves have lower initial costs but may incur higher long-term maintenance costs due to their shorter lifespan.

Replacement Possibility: In projects with sufficient budget and a need for long-term stable operation, hard sealing valves may be a more cost-effective option in the long run, despite their higher initial cost.

Industry Case Studies

Petrochemical Industry:

In environments where high temperature, high pressure, and corrosive media are present, such as in high-temperature reactors, hard sealing valves can effectively handle these extreme conditions, whereas soft sealing valves may fail in high temperatures. Therefore, hard sealing valves can fully replace soft sealing valves in such industries.

Municipal Water Supply and Wastewater Treatment:

In municipal water supply and wastewater treatment systems, where media temperatures are low and non-corrosive, soft sealing valves are ideal due to their good sealing performance and lower costs. Hard sealing valves, although capable of functioning, are over-engineered for these applications.

Steel Smelting Industry:

In steel smelting, where high temperature, high pressure, and particulate-containing media are common, hard sealing valves are more suitable due to their high-temperature resistance, wear resistance, and ability to handle solid particles. Soft sealing valves, due to their vulnerability to high temperatures and pressures, cannot perform effectively.

Conclusion:

Whether a hard sealing gate valve can replace a soft sealing gate valve depends on the specific working conditions. Hard sealing valves are better suited for extreme conditions such as high temperatures, high pressures, and corrosive media, and can replace soft sealing valves in such scenarios.

However, soft sealing valves are more economical and suitable for lower temperature, lower pressure, and non-corrosive media applications. Therefore, the selection should be based on the specific requirements of the application.
