Introduction to Irrigation Water Meters
An irrigation water meter is a flow measurement device specifically designed for agricultural irrigation systems. It enables precise measurement of water usage, helping to optimize water resource allocation, reduce wastage, and enhance crop yields.
Application Scenarios
* Farmland drip and sprinkler irrigation systems
* Orchard and greenhouse automation irrigation
* Large-scale agricultural cooperatives and water management projects
* Water-saving irrigation monitoring in arid regions
Operating Principles of Irrigation Water Meters
Irrigation water meters can be categorized based on technology type, each with distinct operating principles:
| Type | Operating Principle | Applicable Scenarios |
| Mechanical Water Meter | Driven by water flow to rotate a turbine or piston; mechanical gears convert rotations into volume (L/m³) | Low-cost, clean water, low-pressure irrigation systems |
| Ultrasonic Water Meter | Measures flow velocity using the time difference of ultrasonic signals in upstream and downstream directions; no moving parts, resistant to impurities | High-accuracy needs, water containing silt/algae |
| Electromagnetic Water Meter | Applies Faraday’s law of electromagnetic induction, measuring electromotive force from water cutting across a magnetic field | Large-diameter, high-flow irrigation systems |
| Smart IoT Water Meter | Integrates sensors (flow, pressure, temperature) with wireless communication modules (LoRaWAN/NB-IoT) for real-time data upload to cloud platforms | Precision agriculture, remote monitoring, automated irrigation |
Core Advantages of Irrigation Water Meters
| Advantage Dimension | Specific Benefits |
| Precision Measurement | – Error margin as low as ±1% (ultrasonic/electromagnetic vs mechanical ±5%~15%) – Supports both instantaneous and cumulative flow monitoring |
| Water Saving & Efficiency | – Reduces over-irrigation (proven water saving of 15%~30%) – Leak detection to avoid hidden water losses |
| Data-Driven Decisions | – Real-time irrigation efficiency monitoring (e.g., IE index) – Integration with weather stations and soil sensors for optimized irrigation planning |
| Durability & Adaptability | – Corrosion-resistant 316L stainless steel/titanium alloy – IP68 rating, suitable for extreme temperatures (-30°C~80°C) and heavy sediment environments |
| Smart Expansion | – Compatible with agricultural management platforms (e.g., CropX, FarmLogs) – AI-based irrigation demand forecasting, automatic valve control |
| Compliance & Subsidy | – Meets international standards (ISO 4064, ASABE EP405) – Eligible for government subsidies for water-saving equipment (e.g., US EPA WaterSense) |

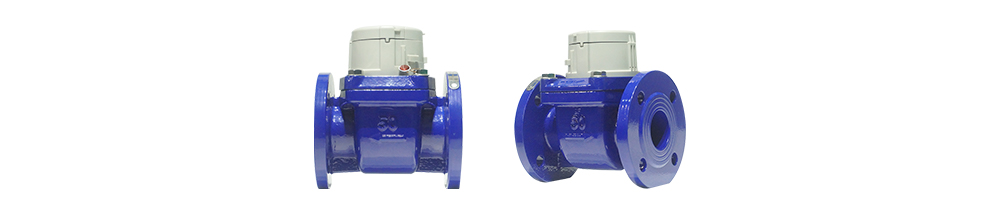

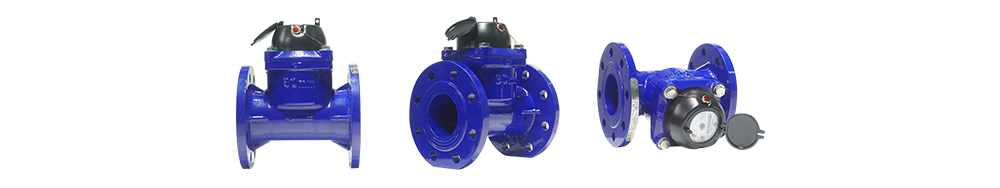

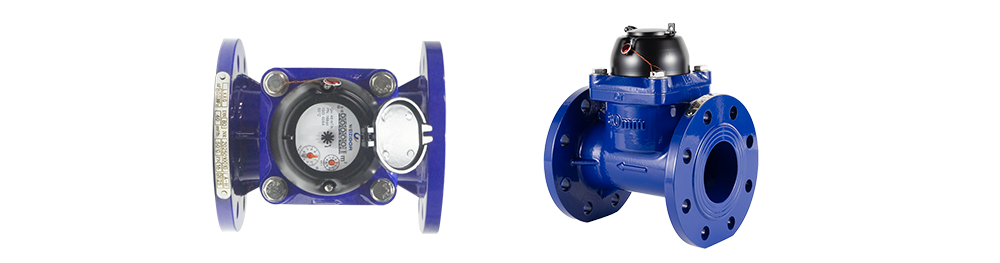

WEIZIDOM WI-LC TURBINE water meter with magnetic transmission, super dry register for irrigation and agriculture application with sizes from DN50 to DN300 designed by WEIZIDOM and meets to the international standard of ISO 4064 standard.
Characteristics of irrigation water meter:
* All the materials in contact with water, consciously selected by the known resistance to corrosion;
* Iron body with inside and outside epoxy coating for protecting the corrosion;
* The ROTATING indicator register for the most comfortable reading position;
* The copper can super dry register with iP68 protection;
* The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing,no needs to dismantle the body form the pipe;
* Paddle wheel design resists blockage and damage to meter from solids in water;
* Magnetic transmission, Low pressure loss;
* Suitable for irrigation, agriculture and waste water application;
* Pulse output always ready,and pulse output as option, detail as:
①The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
②Electric Data: Vmax=24AC/DC; Imax=0,01A;
③Capacity of the Pulse Emitter:
Optional Features:

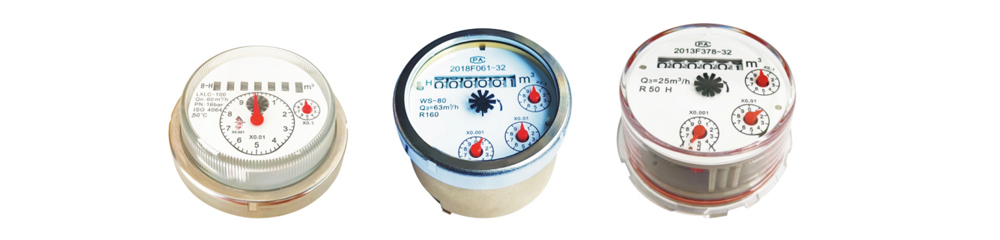

* Plastic register,copper register and full glass register.
* Accuracy: R=20.
* Size: DN50-30Omm.
* Cold Hot water.
* Reed switch option.
* Flange standard can be chosen.
* 360 degree rotate can be chosen.
* Cast iron,Ductile iron, SS304, SS316 body can be chosen.
* Working pressure: PN16/25
* Various types of counters are available.
Working Conditions:
* Water temperature: 0.1°C~40°c(0.1C-90°C for hot water meter)
* Water pressure: PN10/16.
Technical Parameter Comparison
| Parameter | Mechanical Meter | Ultrasonic Meter | Electromagnetic Meter | Smart IoT Meter |
| Accuracy Error | ±5%~15% | ±1%~2% | ±0.5%~1.5% | ±1% |
| Minimum Start Flow | High (>0.1 m³/h) | Very Low (0.01 m³/h) | Low (0.05 m³/h) | Very Low (0.01 m³/h) |
| Pressure Loss | High | Very Low | Low | Very Low |
| Maintenance Cycle | 6~12 months | 3~5 years | 2~3 years | Remote diagnostics, on-demand maintenance |
Application Case Studies
Case 1: Desert Drip Irrigation Project in Israel
Technology: Electromagnetic meter + solar-powered IoT module
Results:
* 40% water savings, 18% increase in tomato yield
* Reduced pipeline leak response time to 2 hours via cloud alarm system
Case 2: Almond Farm in California, USA
Technology: Ultrasonic meter + soil moisture linked control
Results:
* Irrigation Efficiency Index (IE) improved from 0.7 to 0.92
* Annual water bill savings of $120,000, payback period of 8 months
Selection Recommendations for Irrigation Water Meters
Small family farms: Mechanical meters (low cost, easy maintenance)
Medium-sized commercial farms: Ultrasonic meters (balance between accuracy and cost)
Large-scale precision agriculture: Smart IoT meters (data integration, automation)
High salinity/corrosive environments: 316L stainless steel or titanium alloy meters
Routine Maintenance Operations
Regular Cleaning & Anti-Clogging
Filter Cleaning:
Remove debris from the filter to prevent flow reduction or pressure anomalies.
Frequency: Weekly in turbid water areas; monthly for clean sources.
Sensor Cleaning (for smart meters):
Use non-corrosive cleaner (e.g., isopropanol) to clean ultrasonic/electromagnetic probes.
Seal Integrity Inspection
Areas to check: Meter body interfaces, O-rings, flange connections.
Methods:
Apply soap water to check for gas leaks (bubbling observation).
Run at 0.6 MPa pressure, monitor pressure drop within 10 minutes (should be <5%).
Data Calibration & Verification
Mechanical Meters:
Compare with standard container volume; if error >5%, recalibrate at the factory.
Electronic Meters:
Use portable calibration tools (e.g., Fluke 709H); trigger auto-calibration if deviation >±2%.
Seasonal Maintenance Focus
* Winter Freeze Protection
* Drain pipelines, use air compressors to remove residual water.
* Insulate with heating tapes (20~30 W/m) and rubber-plastic insulation (≥20 mm).
* For buried meters, ensure depth exceeds the frost line (at least 1.2 meters in northern regions).
* High Temperature & Sun Exposure Protection
* Install shading; protect the meter head from exceeding 60°C to avoid electronic damage.
* Add aluminum heat sinks or small fans (IP65-rated) for smart meters.
Fault Diagnosis & Emergency Handling
| Fault Phenomenon | Possible Cause | Solution |
| Zero Flow Reading | Turbine stuck/sensor failure | Clean turbine or replace Hall sensor |
| Abnormal Data Fluctuation | Air bubbles interference (ultrasonic meter) | Install air vent or adjust installation angle (5°~10° tilt) |
| Communication Failure (IoT meter) | Battery drained/signal blocked | Replace lithium battery (ER18505) or install LoRa repeater |
| Body Leakage | Seal aging/thread corrosion | Replace fluororubber seals (rated -20°C~150°C) |
Emergency Shutdown Procedure:
Close upstream and downstream valves → drain pipelines → hang “Under Maintenance” sign → log fault code (for smart meters).
Long-Term Maintenance Strategy
Preventive Maintenance Plan
Mechanical Meters:
Lubricate gears every 6 months with food-grade silicone grease.
Replace bearings every 2 years.
Smart Meters:
Remote firmware upgrades (quarterly vendor checks).
Monitor battery voltage; trigger warnings if below 2.8V.
Calibration Cycles & Standards
| Water Meter Type | Calibration Cycle | Reference Standard |
| Mechanical | 1 year | ISO 4064 Class B |
| Ultrasonic/Electromagnetic | 3 years | OIML R49-1:2013 |
| Municipal Water Certification | Annual inspection (mandatory) | AWWA C701/C702 |
Corrosion Protection Upgrades
Re-coat galvanized steel meters with zinc-based coatings (e.g., ZRC Cold Galvanize).
Apply cathodic protection using magnesium alloy sacrificial anodes (replace every 5 years).
Effective maintenance of irrigation water meters is key to ensuring accurate measurement and system reliability. By integrating mechanical maintenance, data calibration, and smart monitoring, users can avoid up to 70% of unexpected downtime and extend equipment lifespan by 2–3 times. Regular maintenance is not only a technical necessity but also a critical strategy for cost control.
