In daily industrial applications, pipeline systems face numerous challenges such as vibration, displacement, and temperature fluctuations. One seemingly inconspicuous component—the rubber expansion joint—plays an irreplaceable role in maintaining the system’s stability. From municipal water supply and HVAC systems to highly corrosive chemical pipelines and large-scale power plants, rubber expansion joints are present everywhere.
But do you really understand their uses, selection methods, and how to avoid common problems during operation?
This article provides a comprehensive overview of the structure, applications, selection, and troubleshooting of rubber expansion joints, helping you avoid pitfalls during procurement and use.
In industrial piping systems, rubber expansion joints (also known as rubber flexible joints or rubber bellows) are critical vibration-damping components. They effectively absorb vibration and noise, reduce damage caused by thermal expansion or misalignment, and greatly enhance the safety and service life of equipment. As modern industries demand higher reliability in piping systems, high-performance rubber joints have become the top choice in fields such as water treatment, HVAC, chemical processing, power generation, and marine engineering.

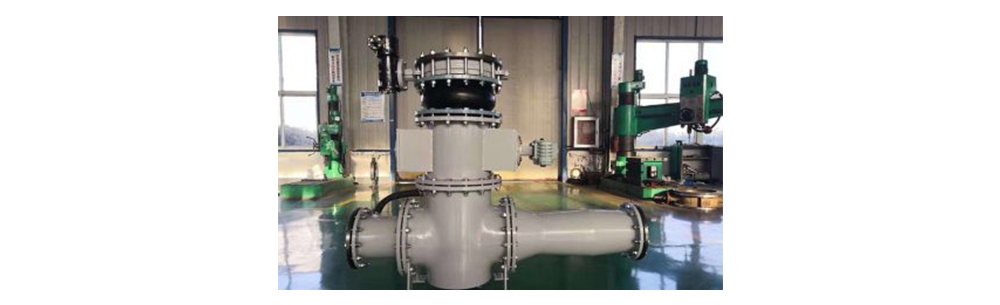

A rubber expansion joint is a flexible connector composed of a rubber body and metal flanges. Utilizing rubber’s elasticity, airtightness, and flexibility, it serves the following functions:
Absorbing vibration and noise
Compensating axial, lateral, and angular displacements
Withstanding water hammer impact
Resisting corrosive fluid erosion
Common structural types include single sphere, double sphere, concentric/eccentric reducers, and threaded types, suitable for various application conditions.

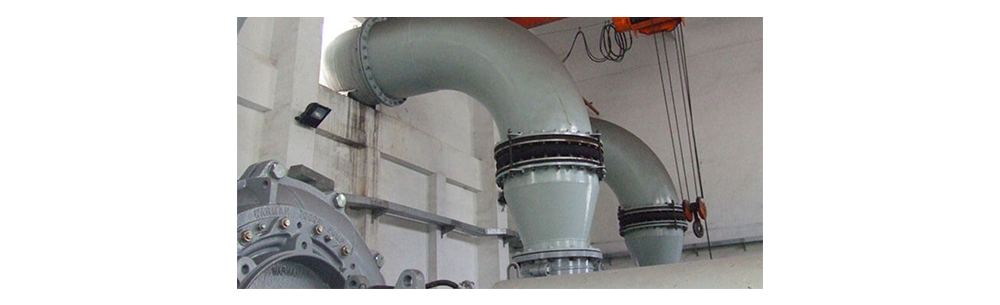

Rubber joints are widely used in fluid, gas, and powder transfer systems. Key applications include:
Water supply/drainage station piping: Effectively buffers water hammer caused by pump startup/shutdown, protecting pipes from deformation.
Sewage treatment plants: Resistant to microbial corrosion with corrosion-resistant rubber materials for extended service life.
Stormwater tanks: Absorbs displacement due to ground settlement.
2. Building HVAC Systems
Chilled/hot water systems: Absorbs thermal expansion/contraction in water pipes.
Boiler connections: Reduces vibration and noise, improves system stability.
Fire protection systems: High pressure and temperature resistance; suitable for rapid operation.
3. Industrial Production Lines
Chemical pipelines: Uses specialized materials (e.g., FKM, NBR) for acids, alkalis, and oils.
Pharmaceutical/food factories: Offers non-toxic, odorless options for sanitary use.
Paper manufacturing: Handles high-concentration pulp with excellent wear and compensation ability.
4. Energy & Power Systems
Thermal power plants: Handles high-temperature water and steam; requires high temp and pressure resistance.
Nuclear plants: Used in seismic and displacement absorption for critical systems.
Solar thermal projects: Compensates for hot water pipeline expansion.
5. Transportation & Railway Engineering
Metro pipelines: Compensates for alignment errors during installation; ensures safe water supply.
Bridge drainage systems: Handles vibration and temperature changes on bridge structures.
Airport piping systems: Large-diameter joints suitable for complex underground layouts.
6. Marine & Offshore Platforms
Seawater cooling systems: Resistant to salt spray and UV, preventing aging and leakage.
Marine engine vibration isolation: Provides flexible connections to reduce vibration transmission.
7. Irrigation & Environmental Projects
Irrigation pipelines: Suitable for underground networks, absorbs terrain-induced stress.
Environmental equipment connections: Used in desulfurization, dust removal systems; resists corrosion and high temperatures.
| Issue Category | Symptom | Possible Cause | Solution |
| 1. Leakage | Water seepage/spray from flange | – Bolts not fully tightened – Uneven sealing surface – Aged gasket – Misaligned installation |
– Re-tighten bolts diagonally and evenly – Check flange smoothness and flatness – Replace aged gaskets – Use joints that tolerate angular displacement |
| 2. Bulging/Cracking | Rubber bulge, rupture, or cracking | – Operating pressure exceeds rated limit – Strong water hammer – Incompatible rubber material – Rubber aging |
– Ensure operating pressure stays within rating (e.g., PN10/16) – Add water hammer arrestors – Use acid/alkali/oil/high-temp resistant rubber – Avoid sun exposure and heat sources |
| 3. Bending/Tearing | Obvious bending or twisting at both ends | – Misaligned installation – Pipe settlement/deformation – Insufficient compensation |
– Ensure coaxial flange installation – Use extended or double-sphere joints – Add guide supports or limit devices as needed |
| 4. Noise/Vibration Not Reduced | Continued noise/vibration at connection | – Wrong selection, low damping – Installed too close to vibration source – No supports or mounts used |
– Use reinforced joints (e.g., double-sphere) – Maintain ≥1m distance from vibration source – Use elastic mounts or base isolators |
| 5. Flange/Bolt Failure | Flange cracked, bolts broken | – Over-tightening or uneven force – Non-standard thin flange – Severe vibration |
– Use thicker forged steel flanges – Tighten diagonally with torque wrench – Add anti-vibration pads or limit rods |
| 6. Vacuum Collapse | Rubber body deformed or collapsed | – Negative pressure without vacuum-resistant design | – Use wire-reinforced vacuum-type rubber joints – Add bypass vents to reduce pressure difference |
| 7. Pull-off/Disconnection | Rubber body slips out or breaks off | – No limit devices in high-vibration environments – No anti-pull fittings during installation |
– Use joints with built-in limit devices – Add tie rods or limit flanges |
| 8. Frequent Replacement/Short Lifespan | Aging in <1 year with frequent use | – Inappropriate material for medium – UV/ozone degradation – High chlorine in water |
– Use EPDM, NBR, FKM based on medium & temp – Apply protective coatings or shielding outdoors – Set up routine inspections and replacements |
Don’t go cheap: Low-cost joints often use inferior materials that can’t withstand long-term vibration or temperature variation.
Focus on proper installation: 80% of failures come from improper installation.
Select material based on medium:
EPDM → hot water/steam
NBR → oil/fuel
FKM → strong acid/alkali
Use limit-type joints: Critical for high-pressure or frequent operation systems.
Routine inspection is essential: Replace when surface cracks or loss of elasticity is found.
V. Rubber Joint Selection Guide
| Factor | Description | Typical Options |
| Nominal Diameter (DN) | Matches pipeline size | DN32–DN1000 |
| Working Pressure (PN) | Operating system pressure | 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa |
| Medium Type | Fluid characteristics | Water, hot water, sewage, steam, acid/alkali, oil |
| Temperature Range | Max medium/environment temp | Room temp, 80°C, 120°C, 150°C |
| Installation Environment | Outdoor, UV, corrosive, vibration | Outdoor/underground/high-vibration areas |
| Medium | Recommended Material | Description |
| Clean/hot/cooling water | EPDM | Anti-aging, heat and steam resistant, ideal for HVAC |
| Weak acids/alkalis | EPDM or NR | Economical, corrosion resistant |
| Oil/fuel/diesel | NBR | Excellent oil resistance |
| Strong acid/alkali | FKM | Highly corrosion- and heat-resistant |
| Food/drinking water | Food-grade EPDM or NR | Non-toxic, tasteless, FDA/WRAS certified |
| Steam/high-temp | EPDM or FKM | Withstands up to 130–180°C |
| Abrasive slurry/solids | Wear-resistant NR or PTFE-lined | Enhanced wear and corrosion resistance |
| Environment | Structure Type | Description |
| Large displacement | Extended or multi-sphere | Offers greater flexibility |
| Tight spaces | Short-body type | Space-saving, lower displacement |
| Heavy vibration/settlement | With limit device | Prevents pull-off or burst |
| Vacuum/negative pressure | Wire-reinforced vacuum type | Maintains structure under collapse |
| Coastal/UV-exposed areas | EPDM + coating | UV and salt fog resistant |
Standards: Based on project location
GB/T 9119 (China) / ANSI (USA) / EN1092 (EU) / JIS (Japan)
Materials:
Q235 carbon steel (standard)
Stainless steel 304/316 (for corrosive/sanitary applications)
Ductile iron (high-pressure municipal use)
Use 8.8-grade high-strength bolts to ensure stable connections.
| Mistake | Potential Consequence | Correct Approach |
| Using standard rubber for strong acids | Corrosion and leakage | Use FKM or PTFE-lined joints |
| No limit device on high-frequency pump | Pull-off or burst | Always use limit-structure joints |
| Using NR for high-temp steam | Rapid aging, hardening | Use EPDM or FKM |
| No protective coating for outdoor use | UV cracking | Apply black paint or use UV-resistant EPDM |
