Discover all types of water meters offered by WEIZIDOM, including mechanical, ultrasonic, and smart water meters. Learn specifications, materials, applications, and how to choose the right water meter for your project.
Accurate water measurement is essential for modern infrastructure, from municipal water supply systems to industrial and agricultural applications. Choosing the right water meter not only ensures billing accuracy but also improves system efficiency and reduces water loss.
As a professional industrial manufacturer, WEIZIDOM provides a full range of water meters designed for different operating conditions, including residential, commercial, industrial, and smart water management systems.
In this guide, we will introduce all major types of WEIZIDOM water meters, including their specifications, materials, features, and ideal applications—helping you select the best solution for your project.
Measuring the total volume of cold water passing through the pipeline.
* High measurement accuracy with a wide metering range.
* Low start-up flow with high load capacity.
* Equipped with non-magnetic sensors across all series.
* Stable performance and excellent durability.
* Replaceable core module.
* IP68 Rating
* Water Temperature: T30 T50
* Water Pressure Class: MAP16 MAP10
* Installation Environment: Class B

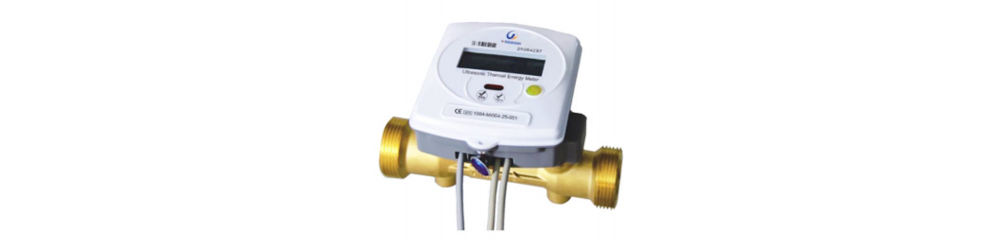

MLCC Ultrasonic Thermal Energy Meter is an inteligent measuring instrumentcomposed of a paired temperature sensor, flow sensor and calculator. Thecalculator achieves accurate measurement of flow, heat or cooling by processingthe temperature difference collected by the sensor and the time difference ofsound waves passing through the fluld, and can provide recording and datatransmission for various appllcations of heating or cooling pipelines.
No moving parts in the measuring mechanism,ensuring no wear and tear Supports vertical, horizontal, or inclined installation anglesHigh-precision temperature measurement probe, PT1000Supports non-full pipe detection
IP67 protection rating, adaptable to various harsh installation environmentsSupports remote meter data reading: Wired reading via RS-485 modbus/M-Bus

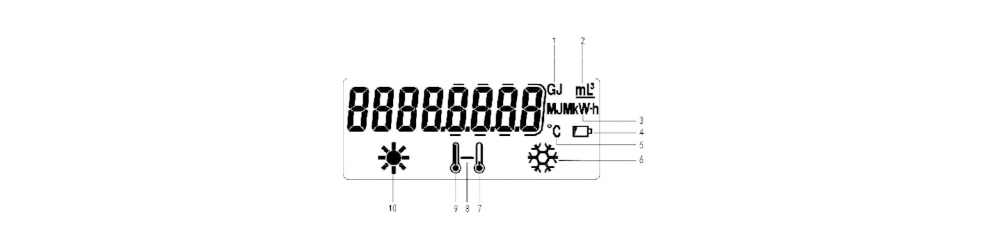

| No | 1 | 2 | 3 | 4 | 5 |
| Name | Energy Measurement Unit | Fluid Measurement Unit | Energy Measurement Unit | Low Battery Voltage Indicator | Temperature Measurement Unit |
| No | 6 | 7 | 8 | 9 | 10 |
| Name | Cooling Capacity Indicator | Outlet Temperature Indicator | Temperature Difference Indicator (7&8&9) | Inlet Temperature Indicator | Heating Capacity Indicator |

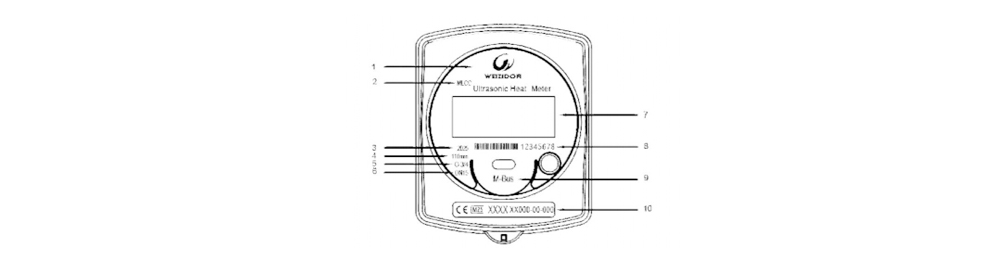

1. Manufacturer’s Logo
2. Model Number
3. Year of Production
4. Dimensions
5. Connection Thread
6. Nominal Diameter
7. LED Display Area
8. Meter Address
9. Communication Method
10. Certification Mark

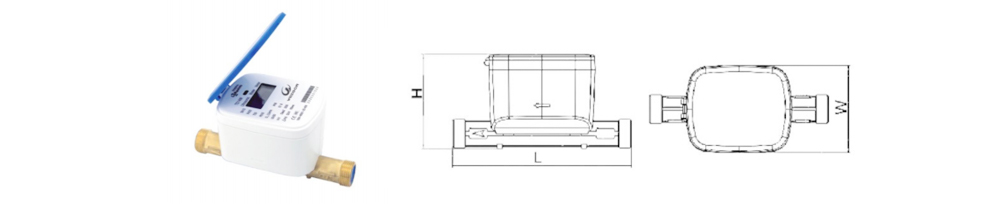

The TS11PW series ultrasonic water meter (valve control) is a high-precision electronic water metering instrument uses the ultrasonic time-difference method to continuously measure, record, and display the volume of water flowing through the sensor. It can meet the strict requirements of water metering management departments for accurate water consumption measurement.
The TS11FW is compatible with IoT transmission technology and provides customized solutions for users with different needs. It is widely used water metering scenarios such as households, apartments, and commercial premises.
* Built-in ball valve, allowing for remote water restriction;
* No moving parts in the measuring mechanism, ensuring no wear and tear;
* Supports a 9-digit LCD display, with the minimum measurement unit of mL;
* Supports vertical, horizontal, or inclined installation angles;
* Supports reverse flow detection;
* Supports non-full pipe detection;
* Low pressure loss;
* IP68 protection rating, adaptable to various harsh installation environments;
* Supports remote meter data reading: Wired reading via RS-485 modbus/M-Bus/-pulse, and wireless reading via LoRa/LoRaWAN/W-MBus/NB -loT.
| No | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Name | Digital Display | Unit Display | Balance Indicator | Remaining Quantity Indicator | Non-full Pipe Alarm | Low Voltage Alarm | Leakage/Drip Alarm |
| No | 8 | 9 | 10 | 11 | 12 | 13 | |
| Name | Valve Open | Valve Indicator | Valve Closed | Reverse Flow Indicator | Fault Alarm | Signal Strength |

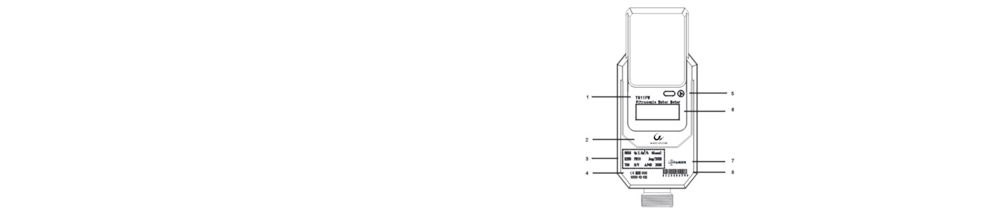

| NO | 1 | 2 | 3 | 4 |
| Name | Model | Manufacturer/Company Logo | Meter Parameters/Specifications | Certification Mark |
| NO | 5 | 6 | 7 | 8 |
| Name | Touch Area | LCD Display Area | Communication Method | Meter Address |

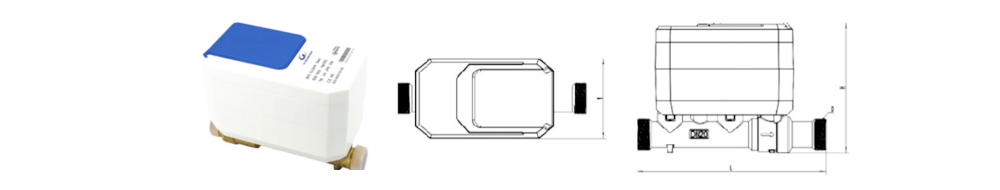

The TS14W series ultrasonic water meter s a high-precision electronic water metering Instrument. It uses the ultrasonic time-difference method to continuously measure, record, and display the volume of water flowing through the sensor. It can meet the strict requirements of water metering management departments for accurate water consumption measurement.
The TS14 is compatible with loT transmission technology and provides customized solutions for users with different needs. It is widely used in water metering scenarios such as households, apartments, and commercial premises.
* No moving parts in the measuring mechanism, ensuring no wear and tear;
* Supports a 9-digit LCD display, with the minimum measurement unit of mL;
* Supports vertical, horizontal, or inclined installation angles;
* Supports reverse flow detection;
* Supports non-full pipe detection;
* Low pressure loss;
* IP68 protection rating, adaptable to various harsh installation environments;
* Supports remote meter data reading: wired reading via RS-485 modbus/M-Bus/pulse, and wireless reading via.

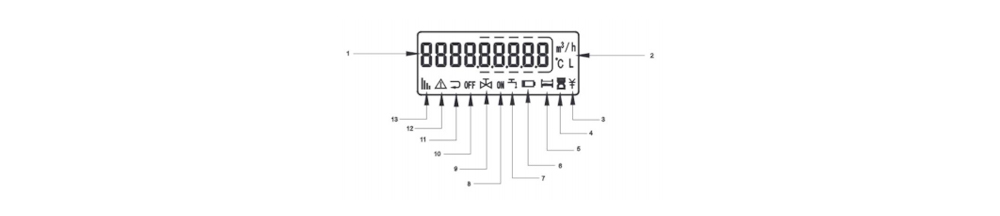

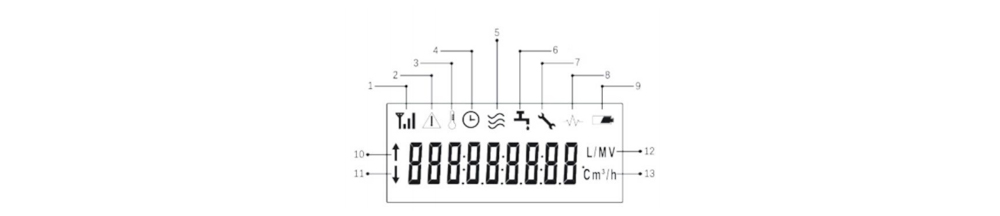

| No | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Name | Signal strength | Fault Alarm | Water temperature | Cumulative working hours | Water flow indication | Drip/leak | Verification status |
| No | 8 | 9 | 10 | 11 | 12 | 13 | |
| Name | Sensor status | Battery voltage | Positive flow | Reverse flow | Unit | Unit |

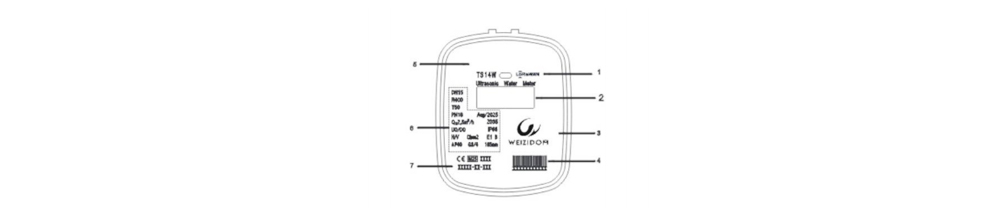

1. Communication method
2. LCD display area
3. Manufacturer’s logo
4. Ultrasonic water meter ID
5. Magnetic trigger induction area
6. Product parameter area
7. Certification compliance mark

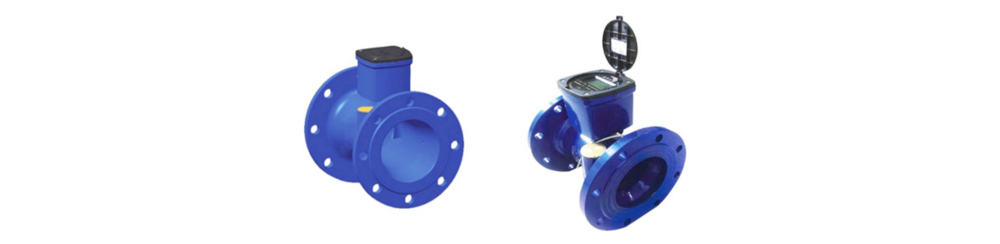

Old-fashioned ordinary mechanical water meters always cause dissatisfaction and complaints from customers because of excessive wear, inaccuracy and short life. The LXC-S8 ultrasonic water meter is an electronic water meter developed and produced to solve these problems. It has been widely used in pipe network metering, public water metering and agricultural irrigation metering and has achieved remarkable results.
The body of the water meter is completely hollow, therefore, it will have almost no pressure loss and no blockage, and it will not affect the accuracy over time. Which can adapt to the installation environment with poor water quality.
The water meter module adopts a special sealing process, and the battery is also completely waterproof. The water meter can even work normally in the water.
Due to different processes, the range ratio of ultrasonic water meters can reach a higher level, and customers can customize its standards according to actual requirements. The higher the R (Q3/Q1) of the water meter, the wider the flow rate range it can detect.

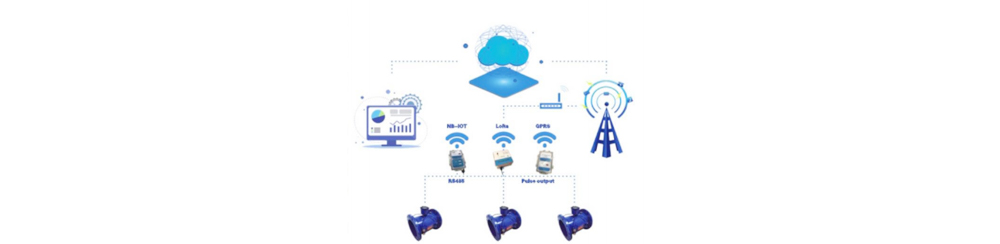

If the customer needs to transmit data remotely, then you can choose to use wired transmission: RS485, M-BUS and pulse output. You can also use wireless transmission: LoRa, GPRS and NB-IOT. You can choose flexibly according to actual needs.
Because the ultrasonic water meter can measure the flow rate of water, it can use this feature to monitor leakage problems, so the remote and timely transmission of data is very important. The LXC-S8 ultrasonic water meter supports a variety of wired and wireless transmission modes, and it can also detect reverse flow, which is very suitable for more complex pipe network water supply environments.Bulk ultrasonic water meters are widely used in the measurement fields of industry, civil drinking water, agricultural irrigation, etc.

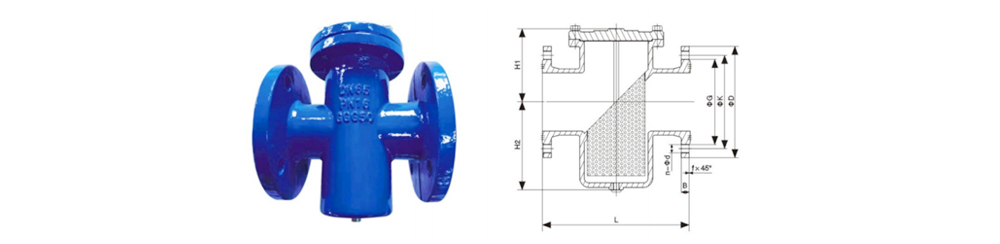

Used for clearing pollution before water meter.Sult for plpeline of DuctlleIron, cast Iron,Steel, PVC, PE.
National Standard
The Environment and Condition: MAP 10
* The fitter is made of stainless steel. It Is not afraid of rust and has a long expiration date.
* Small pressure loss, large circulation capacity.
* Adopt the stainless steel fastener filter core to Max.rust prevention.
* Remove the filter element and remove the dirt. Cleaning is very convenient.
Whether you need valves for reservoirs, pumping stations, irrigation systems, or flood control projects, we offer customized solutions to meet your needs.
For technical specifications, pricing, or custom valve solutions for your water conservancy project, contact Eileen via WhatsApp:

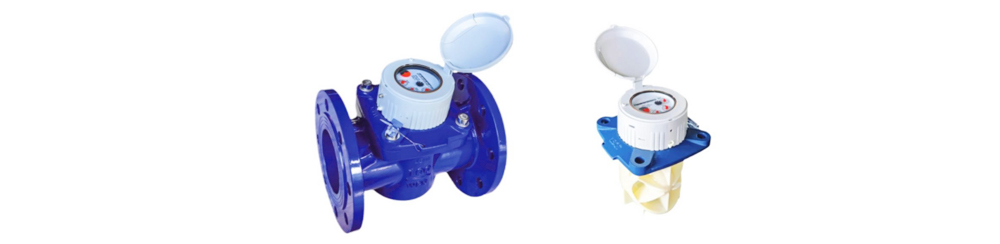

Woltman water meters are used for bulk water measurement in large-scale industrial and municipal pipelines.
Ultrasonic thread water meters are perfect for small-diameter pipes requiring high accuracy and no mechanical wear.
Yes, ultrasonic flange water meters are ideal for industrial use with high accuracy and resistance to harsh conditions.
Yes, brass thread water meters have good corrosion resistance for long-term cold water use.
Yes, but plastic water meters should be protected from direct sunlight to avoid aging.
Ultrasonic thread meters use sound waves (no wear), while brass thread meters rely on mechanical parts for measurement.
