In every fire fighting system, reliability is the top priority. The system must be ready to operate instantly during an emergency to protect lives and property. Among the essential components, butterfly valves play a crucial role in controlling water flow and ensuring the effectiveness of fire protection pipelines.
But many buyers, engineers, and contractors often ask:
👉 What is a butterfly valve in a fire fighting system?
👉 How does it work, and why is it widely used in fire protection pipelines?
👉 Which type of butterfly valve is right for fire fighting applications?
This article provides a complete guide to understanding butterfly valves for fire fighting systems, their types, advantages, and applications.

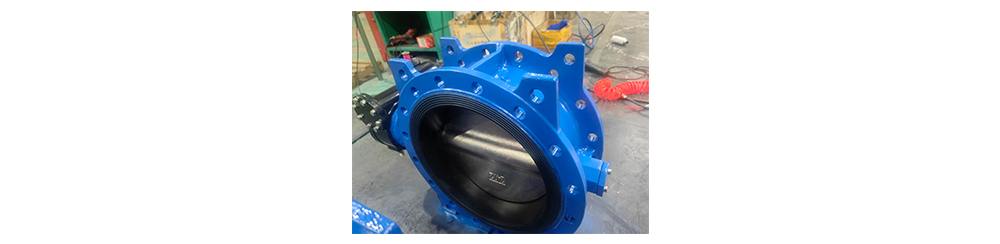

A butterfly valve is a quarter-turn valve used to regulate or isolate water flow. In a fire fighting system, butterfly valves are installed in pipelines to control the distribution of pressurized water to sprinklers, hydrants, and other firefighting equipment.
Quick operation: The valve can open or close with a 90° turn.
Compact design: Requires less installation space compared to gate valves.
Reliable sealing: Ensures minimal leakage, critical in fire safety.
Cost-effective: Lower cost than many other valve types in large diameters.
When the handle or actuator is turned, the disc inside the valve rotates to either allow or block water flow.
Open Position: The disc is aligned parallel to the water flow, allowing maximum flow to pass.
Closed Position: The disc turns perpendicular to the flow, creating a tight shut-off.
Because firefighting requires immediate and reliable water delivery, butterfly valves are valued for their fast operation and durability.
In fire protection, every second counts. Butterfly valves allow operators to quickly stop or start water flow in case of system maintenance, testing, or emergency isolation.
Compared to gate valves and globe valves, butterfly valves are lighter and more compact, making them ideal for large-diameter pipelines in fire fighting networks.
Butterfly valves are often more cost-effective for larger diameters, making them attractive for municipal and industrial fire fighting projects.
In modern fire systems, valves are often automated. Butterfly valves can easily be equipped with electric or pneumatic actuators, ensuring fast and remote operation.
Installed between two pipeline flanges
Compact and cost-effective
Common in indoor fire protection systems
Designed with threaded lugs for bolt connection
Allows disassembly of one side without disturbing the other
Suitable for maintenance in fire fighting systems
Provides strong and leak-proof connections
Used in large-diameter pipelines for municipal fire fighting
Quick and easy to install

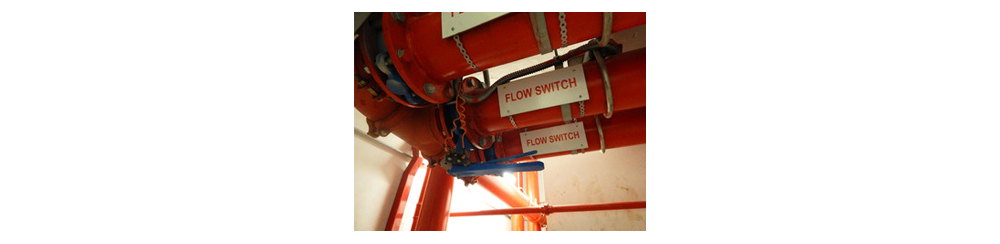

Often used in sprinkler systems
Compatible with grooved coupling pipes
Butterfly valves for fire systems must meet strict international standards to ensure reliability and safety. Common standards include:
UL (Underwriters Laboratories)
FM (Factory Mutual)
AWWA C504 for butterfly valves in water systems
ISO 5752 / EN 593
At WEIZIDOM, our butterfly valves are manufactured to meet UL and FM standards, ensuring compliance with fire safety regulations worldwide.
Cause: Worn seals or debris in the pipeline
Solution: Regular inspection and seat replacement when necessary
Cause: Exposure to untreated water or aggressive environments
Solution: Choose epoxy-coated ductile iron or stainless steel for fire pipelines
Cause: Build-up of scale or incorrect actuator sizing
Solution: Perform preventive maintenance and ensure actuators are properly sized
Pipeline size, pressure rating, and media type
Wafer, lug, flanged, or grooved depending on your pipeline design
Ensure valves are UL/FM approved for fire fighting applications
Manual operation for small systems
Actuated valves for large or automated systems

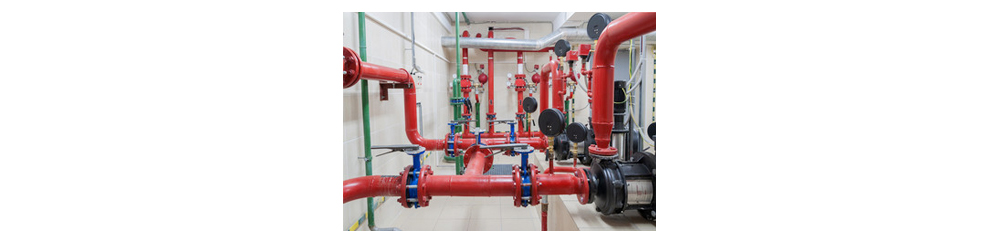

Sprinkler systems in commercial buildings
Hydrant networks in municipal fire fighting

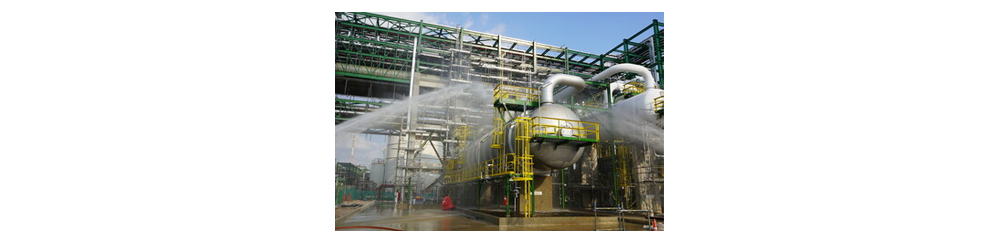

Industrial fire protection in oil & gas plants
Power plants and chemical facilities
High-rise building fire systems
Butterfly valves are an essential component in modern fire fighting systems due to their fast operation, compact design, cost-effectiveness, and reliability. Whether used in sprinkler systems, hydrant pipelines, or industrial fire networks, they ensure safe and efficient water flow control.
At WEIZIDOM, we manufacture and supply high-quality UL/FM approved butterfly valves for fire protection. With over 100 export markets, 1000+ project experiences, and 5+ manufacturing bases, we provide trusted solutions to customers worldwide.
