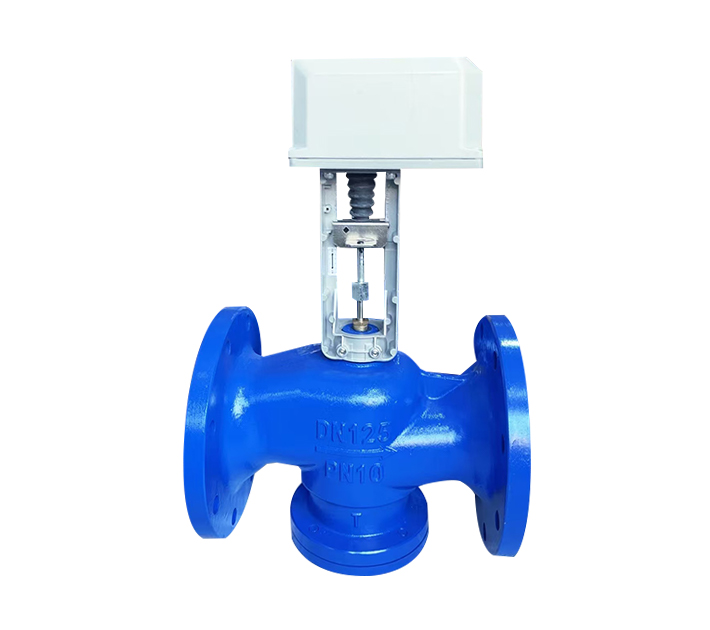

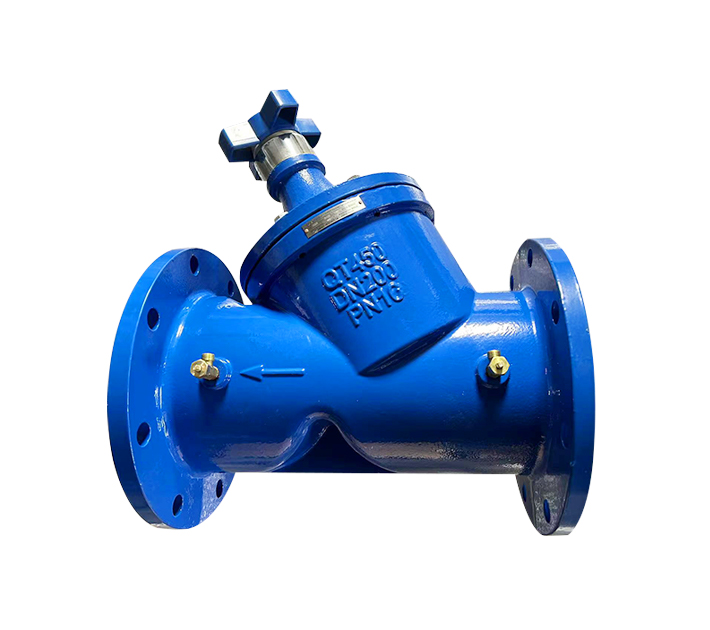

Static Balancing Valve

Size:
DN50-500
Pressure rating:
PN10/PN16
Working temperature:
-10~120℃
Design standard:
GB/T 28636-2012, BS7350
Connection flange:
GB/T17241.6, ISO7005
Products PDF
The lifted seat design controls the flow around the plug so that in case of cavitation this happens with minimal damage away from plug and seat
Features

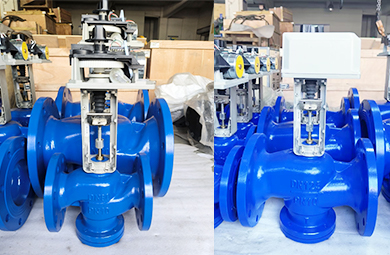

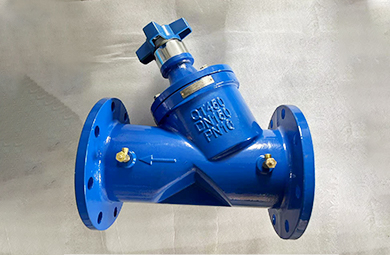

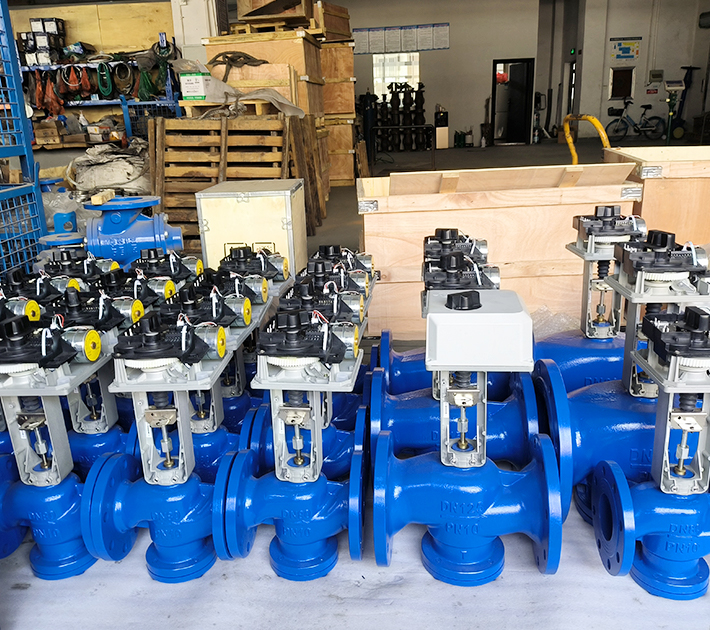

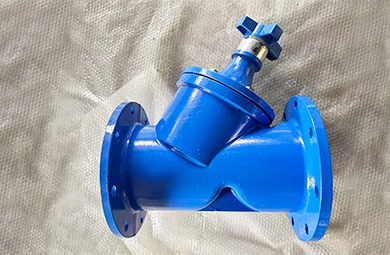

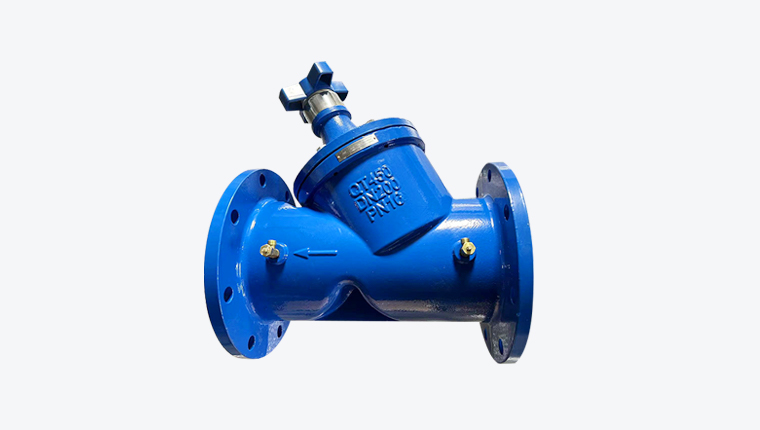

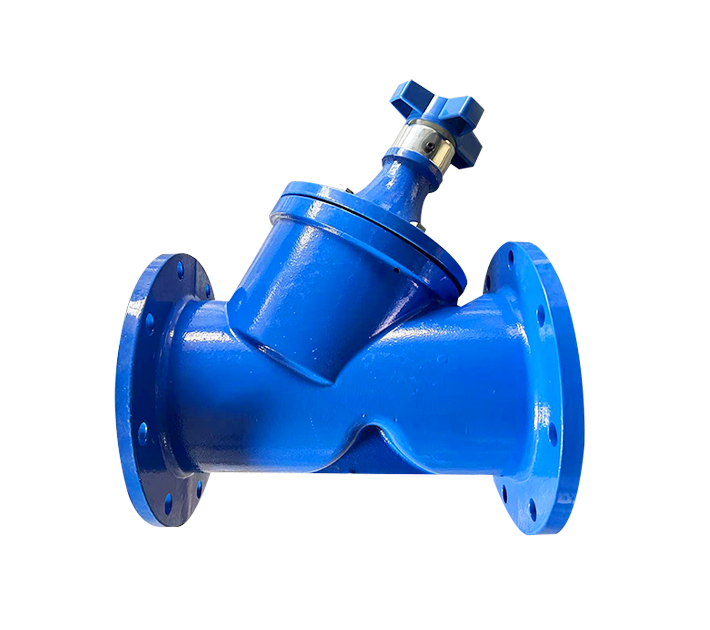

The static flow balancing valve is designed for achieving hydraulic balance between different loops in a circulation system, allowing for precise flow regulation in each branch or at each terminal.
CM series balancing valves can be widely used in heating and cooling systems, domestic water systems, cold tower circulation systems, dehumidification and other hydraulic circulation systems. It calculates the resistance of the primary main pipeline and each graded pipeline, and then uses a differential pressure gauge to measure and adjust the Kvs value to balance the resistance and distribute the flow.
The balancing valve should be installed in a location where manual adjustment, pressure difference/flow measurement, and draining are convenient. It can be installed either horizontally or vertically. To ensure more accurate balancing flow, a straight pipe section must be installed at both the upstream and downstream ends of the valve. The required length of the straight pipe is shown in the diagram. The valve must be installed following the flow direction indicated by the arrow on the valve body.
The balancing valve on the main pipeline should be installed in the direction of the pump outlet. The degree indicator on the handle should face the direction visible to the commissioning personnel for easier adjustment. Ensure that no obstacles are in front of the measurement port on the valve body to avoid obstructing the connection of testing instruments during commissioning.

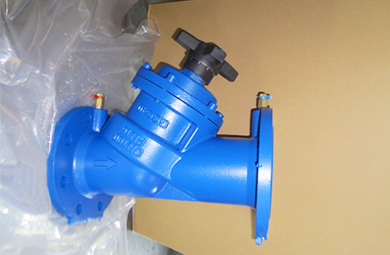

weizidom balancing valve
