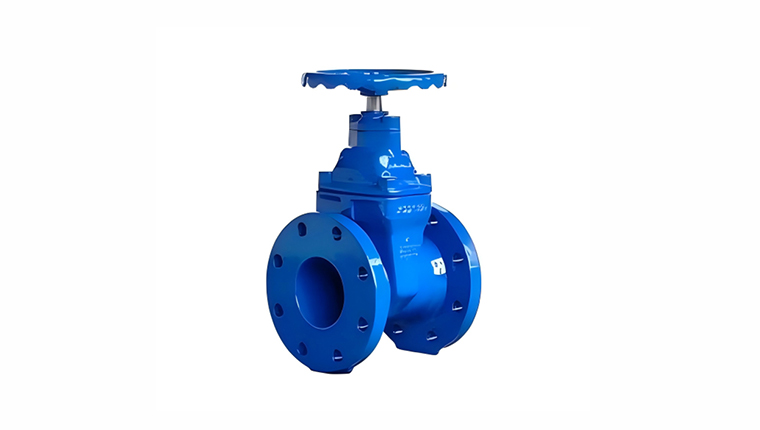

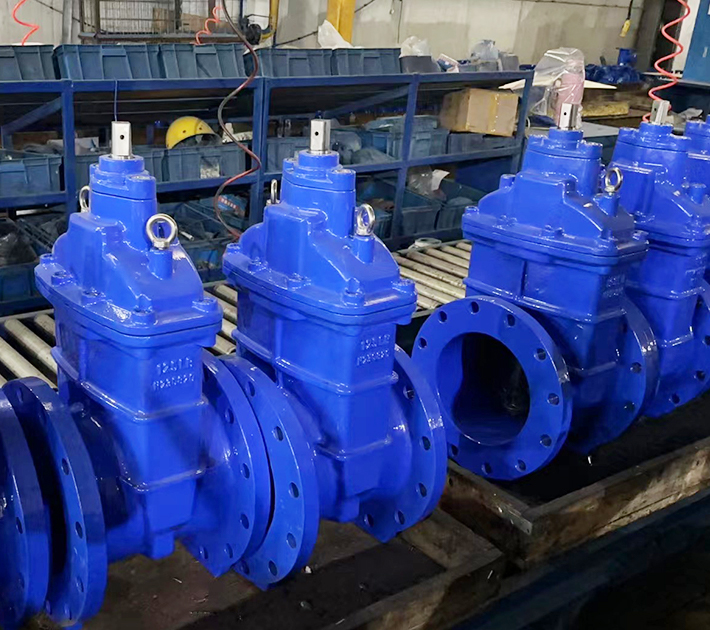

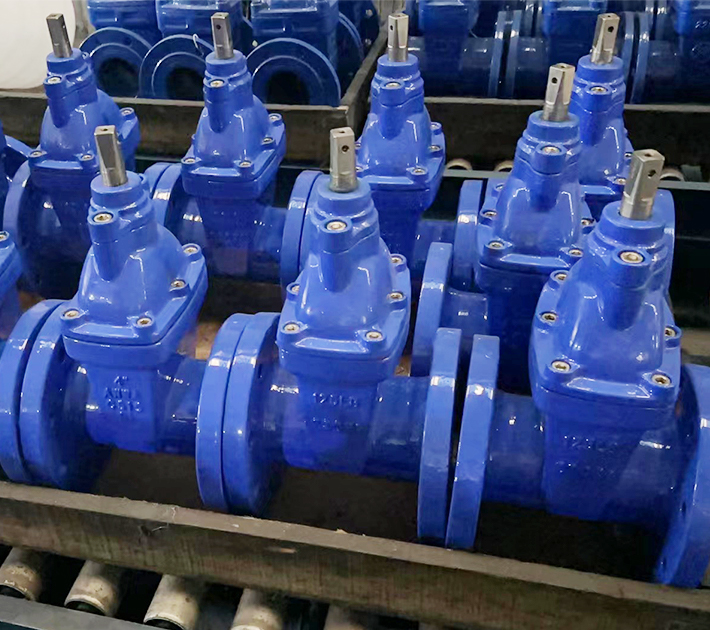

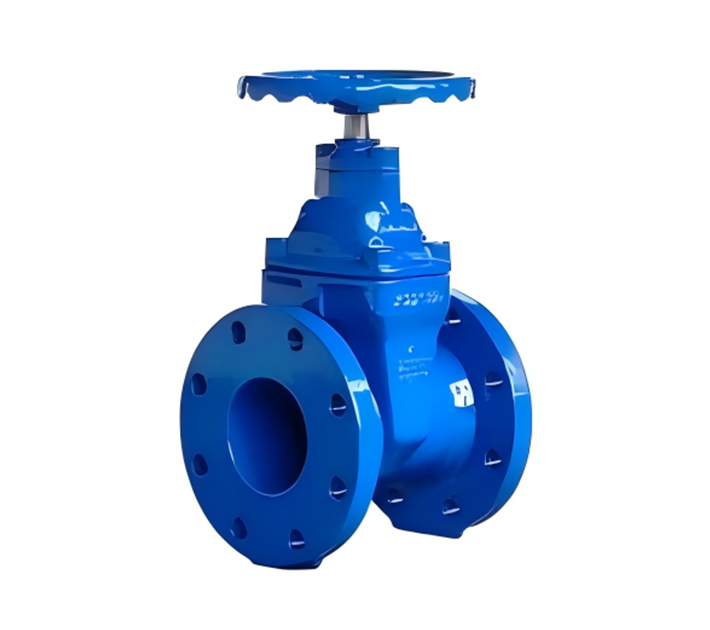

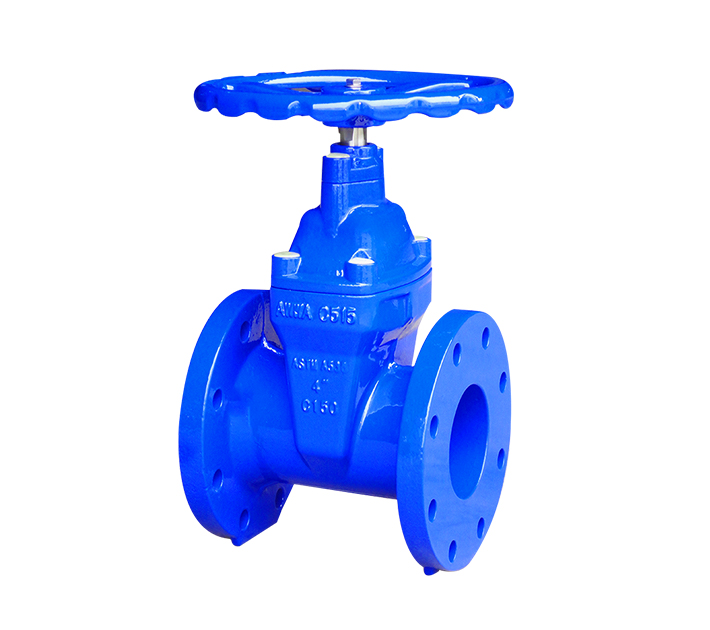

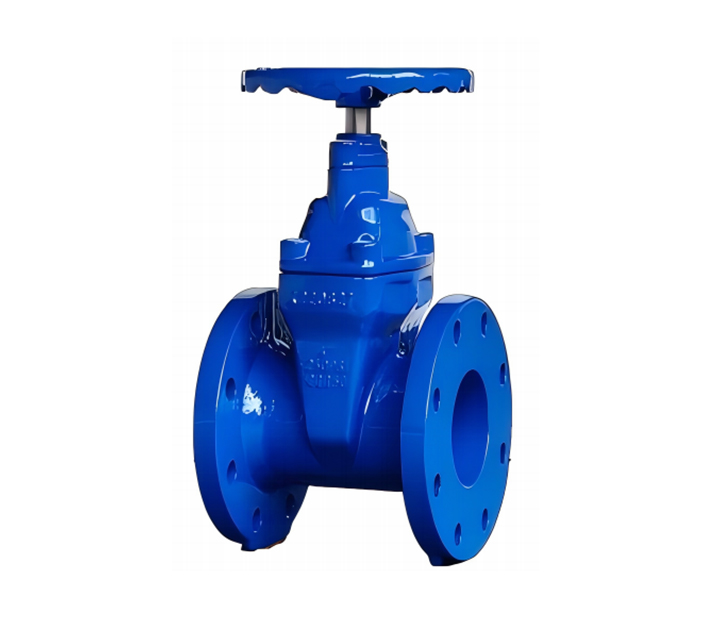

ANSI resilient sealed non rising stem gate valve

Electromagnetic Flowmeter Installation Guide

Products PDF

The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.

Download

(11.6 MB)

Features

Huge convenience in daily water-using and repairing If sealing parts in the bonnet are broken, we could replace the sealing parts with the valve completely open when the valve is still in the pipeline.

Class A sealing (ZERO LEAKAGE)

100% testing before packing and delivery.

Completely free and full bore self-cleaning & low-pressure loss.

Clockwise closing (CWC) as standard, anticlockwise closing upon request.

Operation: Manual handwheel, Square Cap, Extension Spindle.

Bonnet bolts are in Galvanized Carbon Steel, and sealed with hot melt to prevent corrosion. Other materials upon request.

O-ring bonnet gasket wraps each bolt to prevent corrosion.

Linear sealing design provides better sealing & lower closing torque.

WRAS approved for drinking water.
